DHI-LS550UEM-EG
55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm)

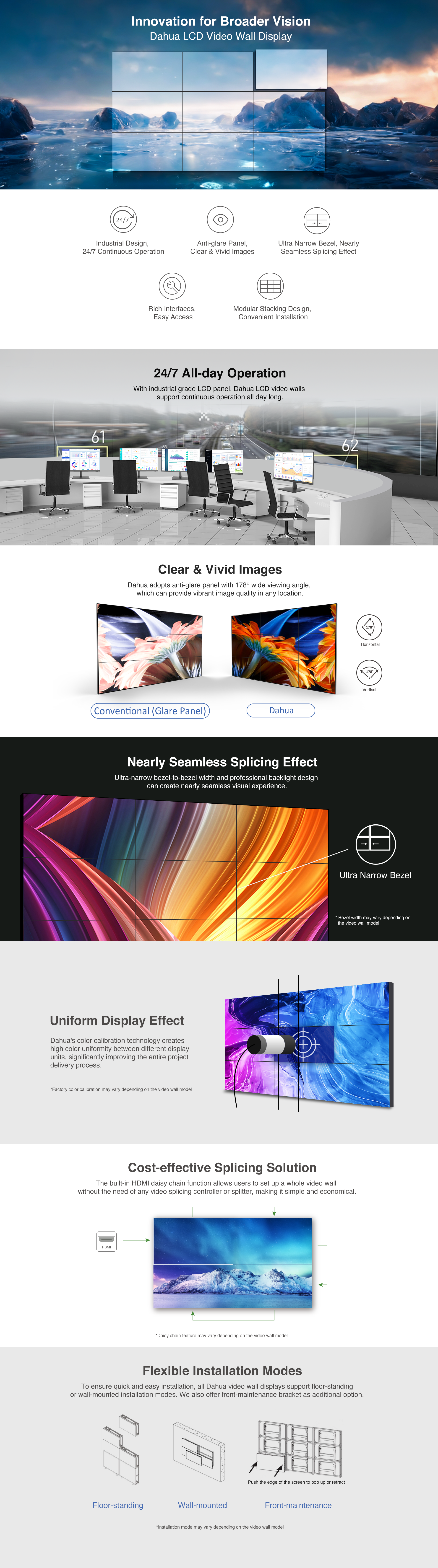

Features
> Industrial level IPS LCD panel, suitable for continuous 24h/7 operation
> Ultra-narrow 0.88mm bezel-to-bezel design
> Anti-glare panel, vivid and memorable image quality
> Factory calibration technology for high color uniformity
> Built-in 3D noise reduction system and picture splicing function
> Abundant interfaces HDMI, DVI, VGA, BNC, USB, supporting HDMI daisy chain
> Infrared, RS232 dual mode, supporting remote control by computer
> Professional thermal design to extend device lifespan
> Built-in power, low energy consumption, ultra-quiet
> Modular structure design, multiple installation modes
> Widely used in surveillance center, command center, meeting room, commercial display scenes, etc.
Specifications
-
Model: DHI-LS550UEM-EG
-
Diagonal Size: 55"(16:9)
Panel Type: IPS
Resolution: 1920×1080 (FHD)
Bezel Width: 0.44mm (T/L/B/R)
Backlight: Direct LED
Brightness: 500 cd/m²
Contrast Ratio: 1100:1
Pixel Density: 40dpi
Viewing Angle: H178°, V178°
Response Time (G-to-G): 8ms
Color Depth: 10bit (1.07B)
Color Temperature: 10,000K
Surface Treatment: Haze 28%, 3H
MTBF: 50,000h
-
Input: CVBS(BNC)×1, VGA(D-Sub)×1, DVI-D×1, HDMI×1, RS232×1, USB×2, Audio×1, IR×1
Output: CVBS(BNC)×1, RS232×1, HDMI×2, VGA×1, Audio×1
-
Power Supply: AC100V～AC240V, 50/60 Hz
Power Consumption (Standby): <0.5W
Power Consumption (Typical): 195W
Power Consumption (Max.): 220W
Energy Efficiency Class (EU): G
Installation Mode: Floor-standing, wall-mounted
Control Mode: Infrared, RS232 dual mode, supporting remote control by computer
VESA: 600×400mm, M6
Net Weight: 24kg (52.91Ib)
Gross Weight: 31kg (68.34Ib)
Product Dimension (W×H×D): 1210.8mm×681.5mm×117.4mm (47.7"×26.8"×4.6")
Package Dimension (W×H×D): 1360mm×945mm×280mm (53.5"×37.2"×11.0")
Operating Environment: Temperature: 0℃~+40℃
Humidity: 10%RH~90%RH (non-condensing)
